Jewelry Automatic Spot Welding Machine, Portable Handheld Welding Machine With LCD, 110v Permanent Jewelry Welder Kit For D I Y Jewelrys Repair Gold And Hardware Workpiece

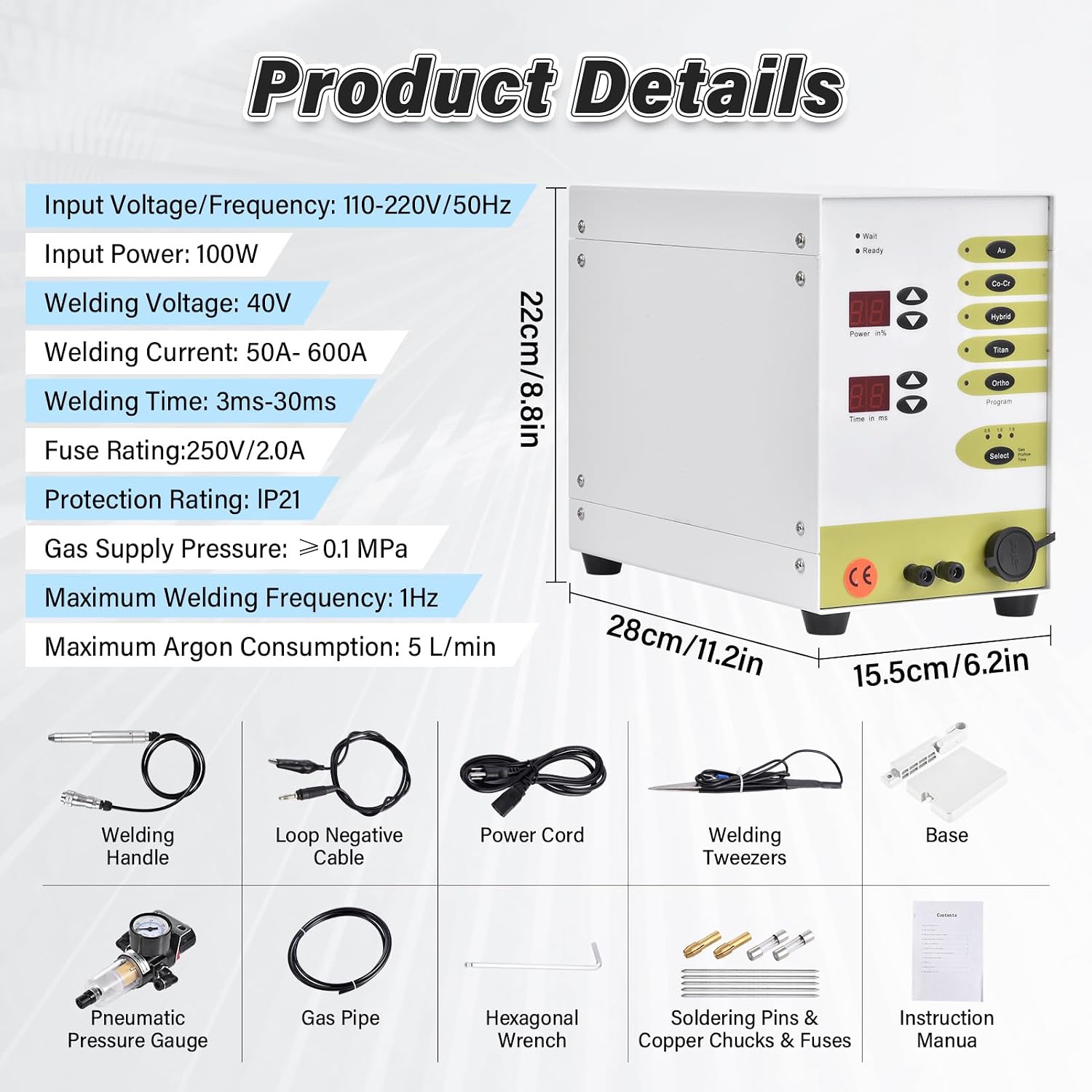

With adjustable power and welding time, for even better results, this welder has a variety of welding needles and chucks to fit your needs. Perfect for any jewelry maker or metalworking enthusiast.Specifications:Product name: Permanent jewelry welder kitHousing material: aluminumProduct size: about 28x22x15.5cm/11.02x8.66x6.1 inchesProduct power: 500W 100A; Welding wire diameter range: 0.5-1.6mm; Applicable materials: Platinum, gold, K-gold, silver, copper, stainless steel, cobalt, chromium alloy, pure titanium; Parameter Adjustment Ranges for Different Wire Diameters; Wire diameter (mm) Parameter (top) Parameter (bottom); 0.5 03 01; 0.65 06 02; 0.7 09 01; 0.8 09 02; 0.9 12 02 (or 09/03); 1.1 15 03;1.3 18 061.5 30 06 (or 30/08); 1.6 30 08; Special Note: It is not possible to achieve a successful weld if the welding tip is touched to the workpiece and immediately removed. The tip must remain in contact with the workpiece without movement or lifting during the entire welding processPacking List:Jewelry welder*1Welding handle*1Base*1Power cord*1Loop negative cable*1Loop negative tweezers*1Pressure-reducing valve and air pressure gauge*1Air hose*1Hexagonal wrench*1Soldering pin(1.0)*5 Copper chuck*4Fuse*2Instruction manual*1Notes:1. Due to different lighting and screen settings, the item color may be slightly different from the picture.2. Due to different manual measurements, please allow a 1-2cm difference in size.

• 【Humanized Work Interface】It includes digital screens to show power and time, indicator lights to show the working information&status, selectable buttons to set up the machine, and various sockets for easy connection, making the operations easier. You can adjust the time and power through the buttons to meet different welding needs. Note: The welding pin will retract automatically upon completion of welding. Do not move the workpiece during the welding process
• 【Safe to Use】The permanent bracelet kit welder has several safety features including automatic voltage compensation, overcurrent protection, overload protection, and overtemperature protection. The machine automatically switches to orthodontic mode if not used within 5 minutes to prevent damage, and the handle socket’s protective cover prevents foreign objects or liquids from entering the machine
• 【Complete accessories】The package of pulse arc welder includes the basic accessories needed for welding (Products not connected to argons can also be used normally, but connected to argons after the use of better, if you want to connect the use of argons you need to prepare their own argons bottle). Press the SELECT key to select three types of deflation time: 0.5, 1.0 and 1.5. Skilled operators can also adjust the short deflation time to save argons gas
• 【Welding Needle】We provide 5 pcs of tungsten welding needle and 2 copper collets, before installing the welding needle, you need to use a grinder to grind the end used for welding into a pointed end, then install it to the welding torch.If there is any debris stuck on the exterior of the soldering pin after use, it can also be polished with a grinder and reused

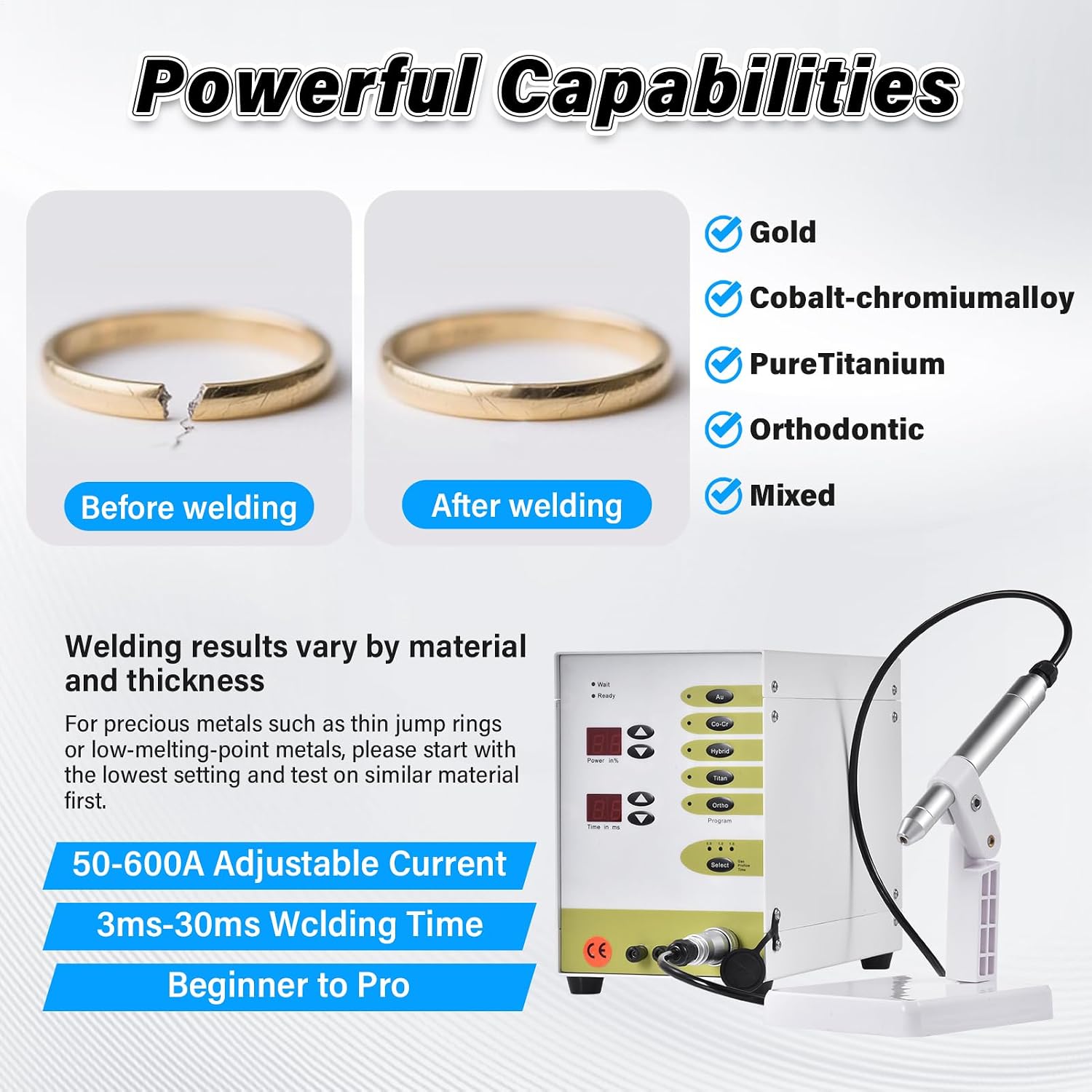

• 【Wide Application】Pulse welder welding diameter range is 0.5-1.6mm, which can be used for pure gold welding, cobalt-chromium alloy welding, titanium welding and orthodontics, hardware workpiece welding, jewelry repair welding, dentals welding, jewelry DIY, outdoor maintenance, and home DIY. Select the welding mode, and this permanent jewelry welding kit will automatically match the current and voltage, making it an ideal choice for beginners
