Intelligent Oscilloscope High Clarity Graphical Digital Oscilloscope Multimeter with 2.4 Inches Color Screen ,Professional Designed

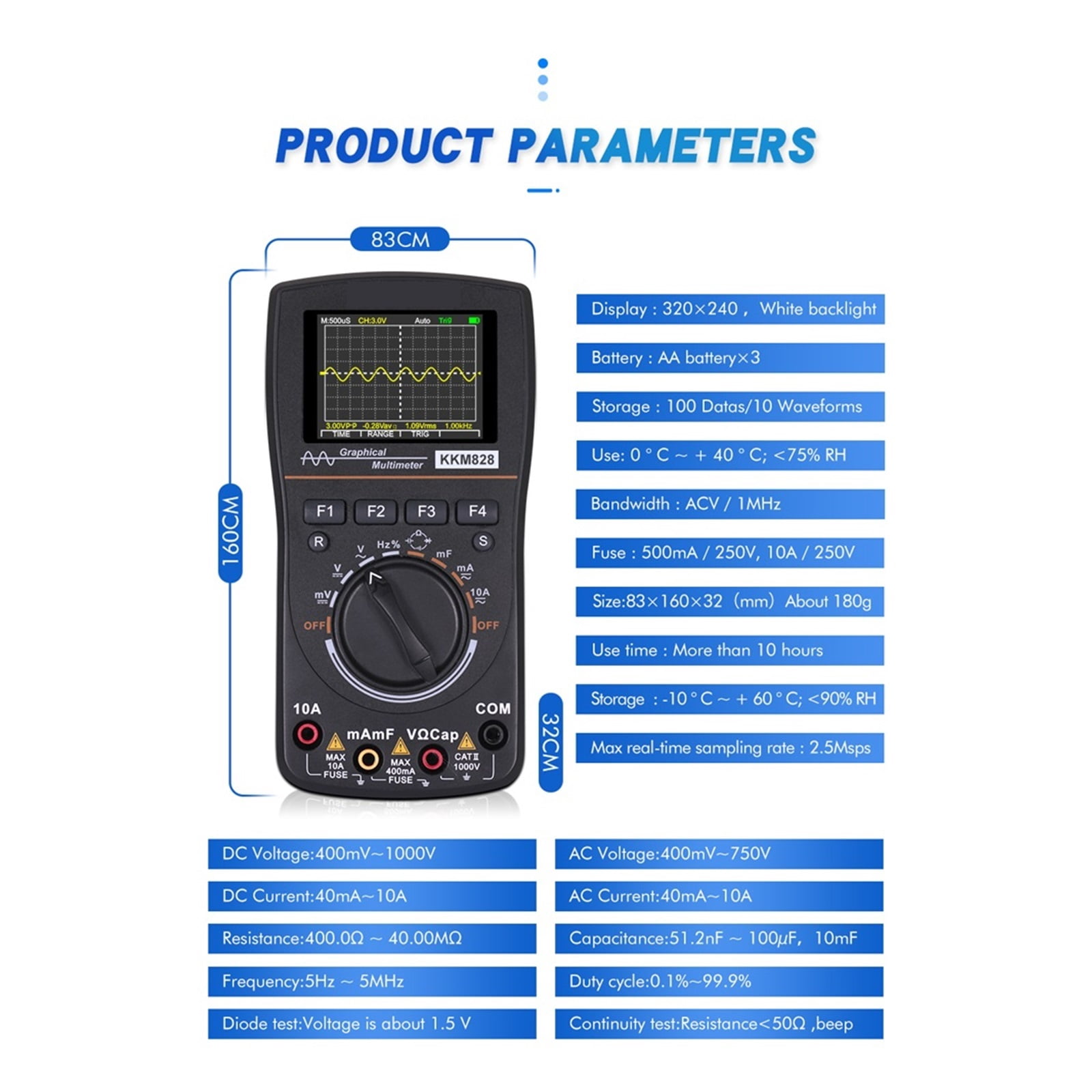

<p>Features:</p><p>Input voltage is greater than 24V, beep warning once. Input over range, beep warning.</p><p>Same screen display: historical records and real-time data are displayed on the same screen for easy comparison and analysis of data.</p><p>Buttons and dial: silicone button, sensitive pressing function dial, accurate gear.</p><p>Back bracket: the back bracket is tilted at 60° for easy viewing.</p><p></p><p>Specifications:</p><p>Material: ABS</p><p>Color: black</p><p>Display: 320*240 LCM</p><p>Display area: about 2.4 inches</p><p>Backlit: white</p><p>Input resistance: 10M</p><p>Battery: 3 * AA battery (not included)</p><p>Power consumption: about 80mA</p><p>Use time: low light about 5 hours</p><p>Storage: 100 data/10 waveforms</p><p>Use environment: 0~40, &lt;75%RH</p><p>Storage environment: -10~60, &lt;90%RH</p><p>Bandwidth: ACV/1MHz ACA/5KHz</p><p>Max. real-time sampling rate: 2.5Msps</p><p>Multimeter measurement: automatic range + manual range</p><p>Oscilloscope function secondary display: VP-P, average value, effective value, frequency, time base, amplitude</p><p>Measurement mode: normal, automatic</p><p></p><p>oscilloscope multimeter, Oscilloscopes, Electronic Measuring Instruments, Measurement &amp; Analysis Instruments</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

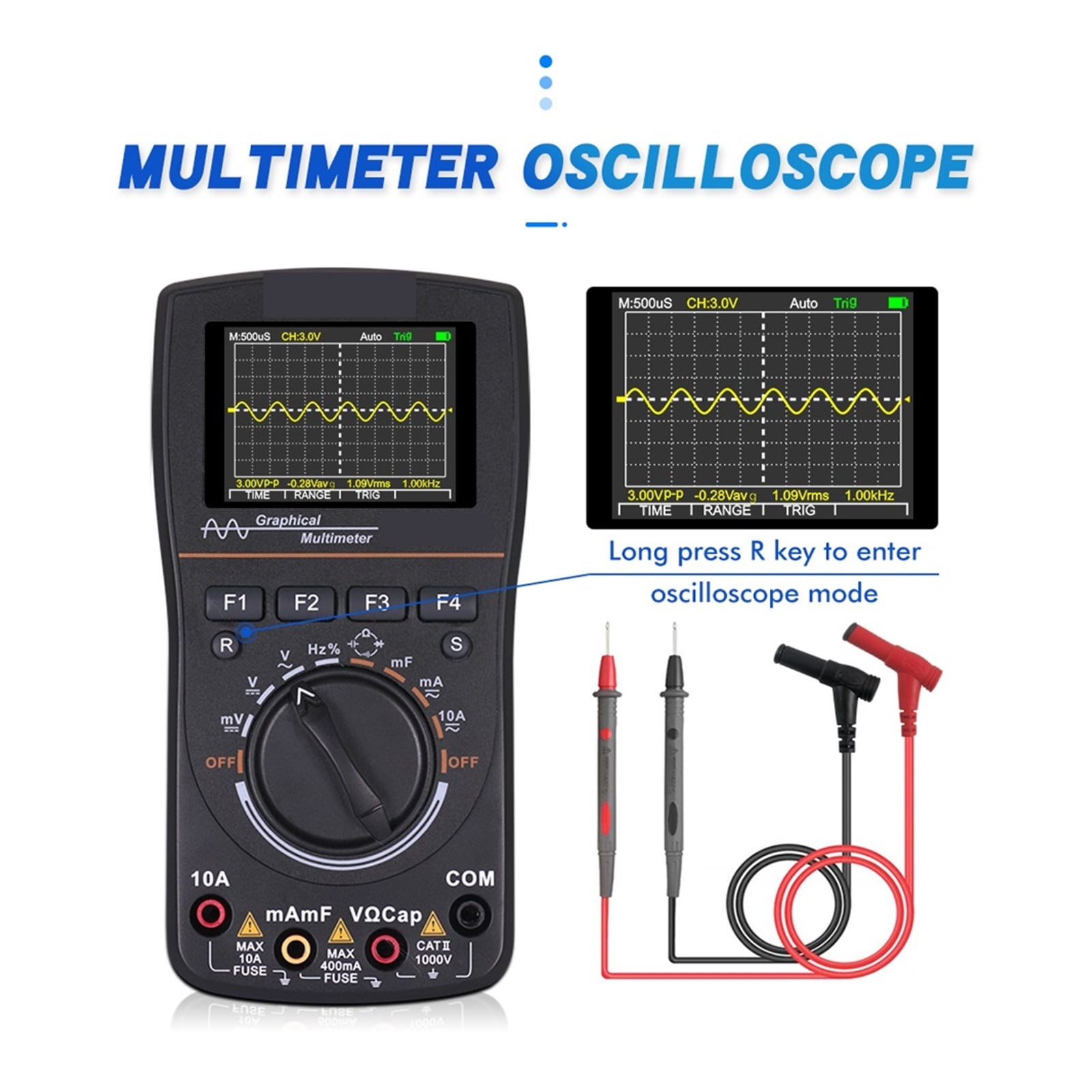

• Oscilloscope multimeter 2 in 1, improve your work efficiency.
• One-button oscilloscope: no need oscilloscope probe, measuring waveform directly. Fast and accurate measurement, clear waveform display.

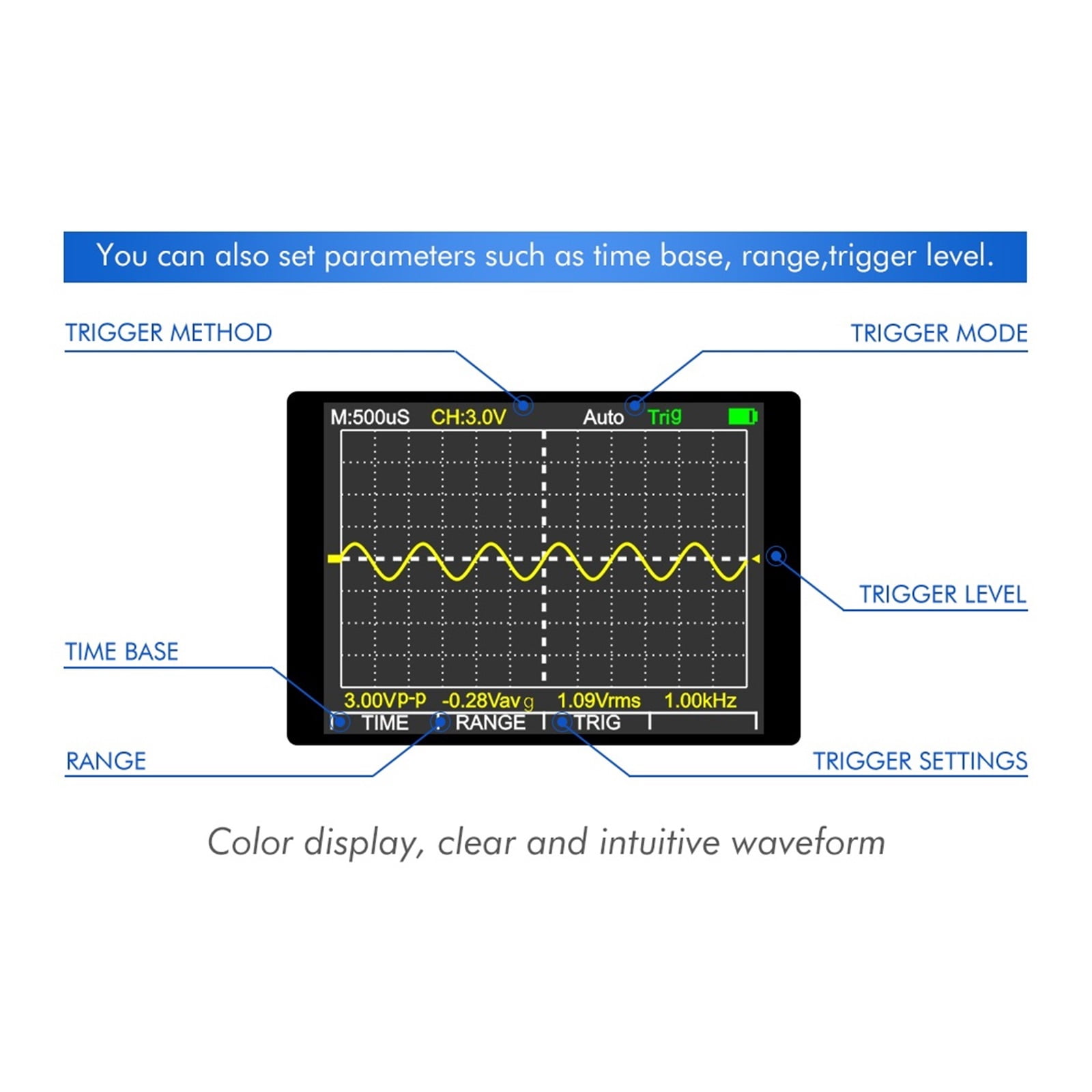

• 240*320 720P color screen: the color display is clearer, and the secondary display at the bottom provides more function menus.

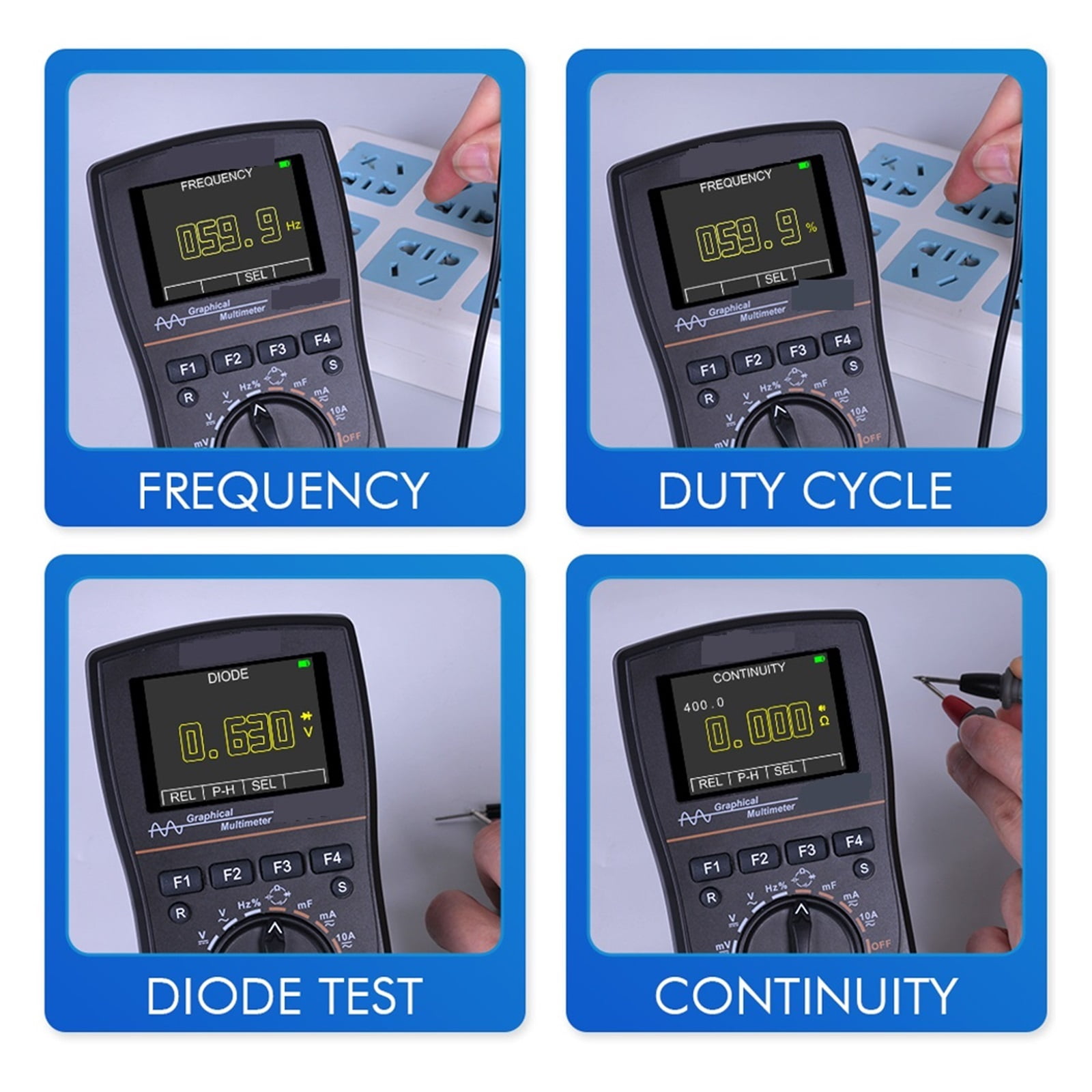

• Multimeter measurement functions: AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode test, continuity test.
• Storage: mass storage, 100 data/10 waveforms.
